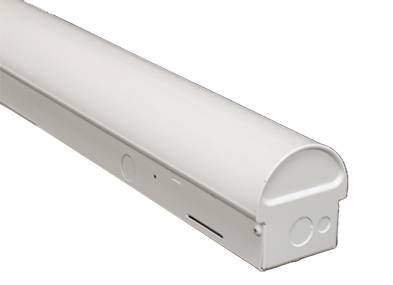

2' NARROW 3000K
LED LINEAR FIXTURE
PF-NARROW-2/20/YDM/830
DESCRIPTION
The narrow series is a LED linear fixture that fits into most compact of widths. It offers fast surface mounting as well as row mounting. Thermal expansion and contraction of the lens is not an issue. Dimmable and suitable for damp locations.
SPECIFICATIONS
- SKU: PF-NARROW-2/20/YDM/830
- FINISH – White
- OTHER FINISHES – Custom
- COLLECTION – Narrow
- MATERIAL – Stamped Sheet Metal
- DIFFUSER – Polycarbonate
PRIMARY LIGHTING
- LIGHT SOURCE – 20W LED
- LUMENS – 2560
- VOLTAGE – 120V
- COLOR TEMP -3000K
- CRI – 80
DIMENSIONS
- LENGTH – 22.2″
- WIDTH – 1.9″
- HEIGHT – 2.5″
- BACKPLATE – N/A
- WEIGHT – 3.2 LBS
ADDITIONAL INFORMATION
- LED L70 LIFE: > 100,000 hours
- UL NUMBERS: E524483 UL – 1598
- DLC PRODUCT 1D: S-R570J4
- OPTIONAL ACCESSORIES: Surface / capable-suspended / v-hooks & chain suspended mountings kits, row connector, right angle connection kit, wire guards with sqaure or arc profiles.
