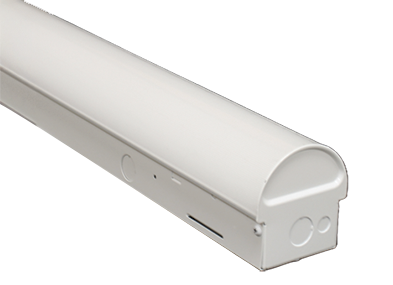

4' NARROW 3500K
LED LINEAR FIXTURE
PF-NARROW-4/40/YDM/835
DESCRIPTION
The Narrow series is a LED linear fixture that fits into most compact of widths. It offers fast surface mounting as well as row mounting. Thermal expansion and contraction of the lens is not an issue. Dimmable and suitable for damp locations. Motion sensor and battery backup available.
ADDITIONAL INFORMATION
LED L70 LIFE: > 100,000 hours
UL NUMBERS: E524483 UL – 1598
DLC PRODUCT 1D: S-86WNJQ
OPTIONAL ACCESSORIES: Surface / capable-suspended / v-hooks & chain suspended mountings kits, row connector, right angle connection kit, wire guards with square or arc profiles.
SPECIFICATIONS
- SKU: PF-NARROW-4/40/YDM/835
- FINISH – White
- OTHER FINISHES – Custom
- COLLECTION – Narrow
- MATERIAL – Stamped Sheet Metal
- DIFFUSER – Polycarbonate
PRIMARY LIGHTING
- LIGHT SOURCE – 40W LED
- LUMENS – 5200\
- VOLTAGE – 120 – 277V
- COLOR TEMP – 3500K
- CRI – 80
DIMENSIONS
- LENGTH – 47.3″
- WIDTH – 1.9″
- HEIGHT – 2.5″
- BACKPLATE – N/A
- WEIGHT – 5.4 LBS
