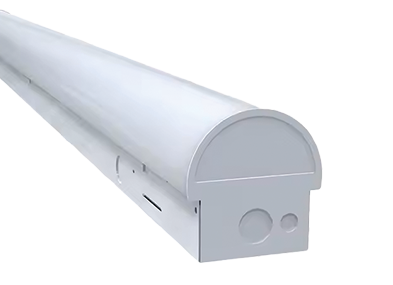

4' NARROW CCT
LED LINEAR FIXTURE SENSOR
PF-NARROW-4/YDM/CCT/SR
DESCRIPTION
The Narrow series is a LED linear fixture that fits into most compact of widths. It offers fast surface mounting as well as row mounting. Thermal expansion and contraction of the lens is not an issue. Dimmable and suitable for damp locations. Bi-level motion sensor included and battery backup available.
SPECIFICATIONS
- SKU: PF-NARROW-4/YDM/CCT/SR
- FINISH – White
- OTHER FINISHES – Custom
- COLLECTION – Narrow
- MATERIAL – Stamped Sheet Metal
- DIFFUSER – Polycarbonate
PRIMARY LIGHTING
- LIGHT SOURCE – 40W LED
- LUMENS – 5280
- VOLTAGE – 120 – 277V
- COLOR TEMP 3000K
- CRI – 80
DIMENSIONS
- LENGTH – 47.3″
- WIDTH – 1.9″
- HEIGHT – 2.5″
- BACKPLATE – N/A
- WEIGHT – 5.4 LBS
ADDITIONAL INFORMATION
- LED L70 LIFE: > 50,000 hours
- UL NUMBERS: E524483
- OPTIONAL ACCESSORIES: Surface / capable-suspended / v-hooks & chain suspended mountings kits, row connector, right angle connection kit, wire guards with square or arc profiles.
